Vendor: RCR TRAFFIC

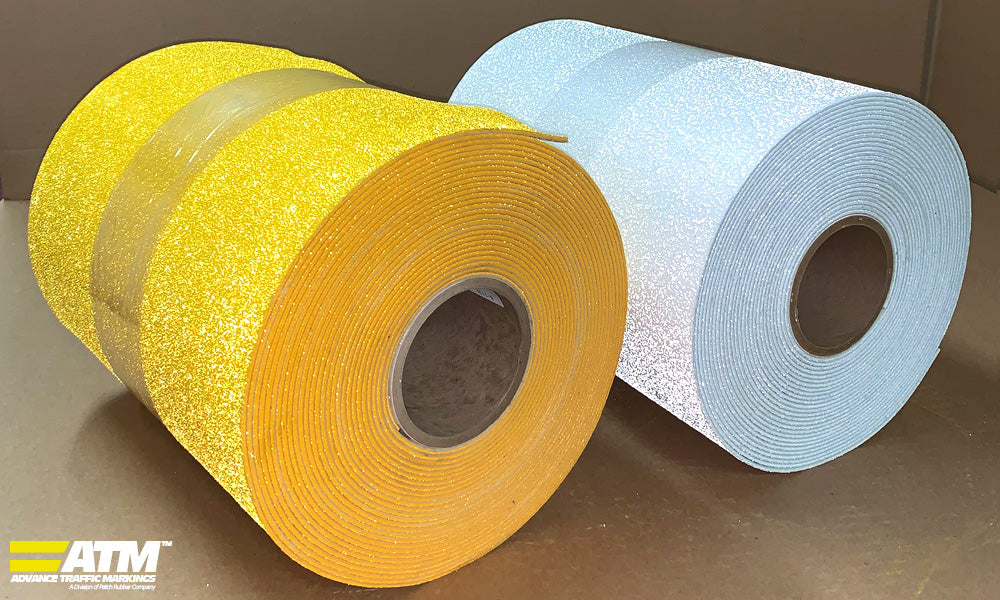

AM Pavement Marking Tape

ATM 200 Marking Tape offers excellent daytime visibility for delineation and superior nighttime reflectivity. The pre-applied, pressure-sensitive adhesive extends the application season typically shortened by marginal weather conditions.

Features

Recommended for construction projects up to one year
Safely guide traffic through work zones

Quick and easy installation: simply prepare the surface, apply the tape, and tamp in place. When the job is completed the reinforced fabric backing makes removal easy. Marked roadways can be opened to traffic immediately. ATM 200 Series is available in white and yellow featuring multiple roll widths.

A complete line of legends and symbols are available that meet MUTCD and state specifications.

ATM Permanent Marking Tapes

Highly Visible - Retro-reflective tapes and symbols are suitable for marking highways, streets, intersections, or anywhere traffic markings are required.

Secure Adhesion - A superior adhesive ensures ATM products maintain a secure bond to asphalt and concrete road surfaces through any climate

ATM 300 provides exceptional durability in the most demanding traffic conditions. Recommended for longitudinal and transverse application in moderate traffic areas.

The highly retroreflective tape offers superior visibility under all lighting conditions. Minimum 60 mil. (1.52mm) thick composite resists wear. Superior adhesive system prohibits tape movement in hot and cold climates. The ATM adhesive system extends the application season typically shortened by marginal weather conditions. Quick and easy installation: simply prepare the surface, apply the tape, and tamp in place. For superior durability in snow conditions, the grooved inlay method must be used. Marked roadways can be opened to traffic immediately.

A complete line of legends and symbols are available that meet MUTCD and state specifications.

Specs

Meets Or Exceeds ASTM D4505 Standard Specification For Preformed Retroreflective Pavement Marking Tape For Extended Service Life

Series 300 Durable preformed plastic, permanent marking tapes are designed for usage on asphaltic or concrete surfaces. Series 300 tapes are suitable for longitudinal markings and transverse markings including word/symbol markings. Series 300 Durable tape is available in white, yellow and custom colors.

Series 400 Extended Life preformed plastic, permanent marking tapes are designed for usage on asphaltic or concrete surfaces. Series 400 tapes are suitable for longitudinal markings and transverse markings including word/symbol markings. Series 400 Extended Life tape is available in white, yellow and custom colors.

Physical Properties

Composition: All Permanent Series Tapes consist of a pre-applied, pressure-sensitive adhesive with high-quality polymeric materials, pigments and glass beads assuring long term retroreflectivity.

Applicability To Pavement Surfaces: Ambient temperatures, 24 hours before and after, of 40°F (5°C) and rising. See Manufacturer's Application Instructions included in each box.

Adhesion: Permanent Series Tapes will adhere to asphalt or portland cement concrete roadway surfaces when applied according to the manufacturer’s recommended procedures.

Pigmentation: Permanent Series Tape pigments are selected and blended to provide a marking tape in white or yellow conforming to standard highway colors.

Skid Resistance: Permanent Series 300 and 400 tapes will have an initial minimum skid resistance value of 55 BPN when tested according to ASTM E 303.

Reflectance: Permanent Series Tapes have the following minimum results when tested in accordance with ASTM D4061.

	White			Yellow
Entrance Angle-Degrees		86.0	86.0		86.0	86.0
Observation Angle-Degrees		0.2	0.5		0.2	0.5
Specific Luminance (mcd ft-2 (fc)-1)		1770	1270		1310	1000
LTL 2000 Reflectometer		800			500

Performance Requirements

Series 300 tape, when applied according to the manufacturer’s recommendations, shall provide a minimum service period of 24 months in light to moderate traffic volume.

Series 400 tape, when applied according to the manufacturer’s recommendations, shall provide a minimum service period of 36 months in moderate to heavy traffic volume.

In snow removal areas, plowing may shorten tape’s life cycle.

Series 300 and 400 are also available with extended four and six-year warranties. Please contact your ATM Sales Representative for specifications.

If an installer has questions concerning the types of surface that preformed polymer tape can be applied or weather conditions not referred to above, they may contact their local ATM Regional Manager or 252-536-2574 ext.5138.

ATM 300C Contrast Tape offers exceptional durability and high visibility in the brightest light. The 1-1/2" wide black boarders on 4" or 6" wide reflective white tape provides contrast for use on Portland concrete cement.

Features

Positive lane marking in the brightest light
Heavy grade tape outlasts paint
60 mil thickness

Recommended for longitudinal and transverse application in high traffic areas. The non-reflective matte black boarders frame the highly retroreflective tape offering superior visibility in comparison to painted stripes on light colored road surfaces. The thick 60 mil (1.52mm) composite resists wear and provides extended life over standard highway markings. The ATM adhesive system extends the application season typically shortened by marginal weather conditions. Marked roadways can be opened to traffic immediately.

ATM 400 provides exceptional durability in the most demanding traffic conditions. Recommended for longitudinal and transverse application in high traffic areas.

Features

Heavy grade tape
Ideal for hot and cold climates
90 mil thickness

The highly retroreflective tape offers superior visibility under all lighting conditions. Extra thick 90 mil. (2.29mm) composite resists wear and provides extended life over standard highway markings. Superior adhesive system prohibits tape movement in hot and cold climates. The ATM adhesive system extends the application season typically shortened by marginal weather conditions. Quick and easy installation: simply prepare the surface, apply the tape, and tamp in place. For superior durability in snow conditions, the grooved inlay method is required. Marked roadways can be opened to traffic immediately.

A complete line of legends and symbols are available that meet MUTCD and state specifications.

Speeding and inattentive driving are the leading causes of accidents in high pedestrian areas. ATM Rumble Strips alert drivers and slow traffic without the added time and expense of installing thermoplastic, asphalt, or grooved rumble strips.

Features

Commands driver attention in pedestrian areas
Bright orange makes dangerous areas highly visible

Self-adhesive rumble strips create a visual, audible, and physical alert to drivers in traffic areas where caution is critical, such as school and airport pick-up and drop-off zones, hospitals, and other pedestrian areas. The highly visible, bright orange rumble strips focus drivers' attention on the road and surroundings, while a repeating "rumble" sound and physical vibration increases drivers' awareness.

Rubber-based ATM rumble strips install easily with no special equipment. Specially designed for concrete and asphalt surfaces, rumble strips have a pre-applied adhesive backing that creates a secure bond to the road surface. Quick installation reduces the amount of time workers are exposed to dangerous traffic conditions. Roadways can be opened to traffic immediately after installation.

The strips are available in 4" x 96' rolls. Rumble Strips are available in orange, white, and black. Use Rumble Strips in conjunction with ATM's extensive line of highway markings including arrows and symbols.

Thickness: 0.250 Inches (6.3mm)

ATM Rumble Strips Specifications

Specifications for Rumble Strip Polymer Tape

Installation is easy! Just clean the area, position the strips and tamp them down. The roadway can be opened to traffic immediately.

ATM Rumble Strips are designed to be used on asphalt and concrete road surfaces.They are supplied with a pre-applied, proprietary adhesive and are available in various widths and roll lengths. Not for application on asphalt surfaces less than 30 days old.

Physical Properties

Composition: ATM Rumble Strips are produced from high-quality polymers, pigments, and process aids.

Application: ATM Rumble Strips will adhere to asphalt or portland cement concrete roadway surfaces when applied according to the manufacturer’s recommended procedures. Ambient temperatures, 24 hours before and after, of 50°F (10°C) and rising. See Manufacturer's Application Instructions included in each box.

Adhesion: High-tack, user-friendly, proprietary polymeric adhesive which provides a permanent bond to the road surface.

Applicability To Pavement Surfaces: Refer to ATM Rumble Strip Application instructions included with each box.

Color: Orange, Black, and White*

Tensile Strength: 250 psi minimum tested according to ASTM D638

Fade Resistance: 4 Minimum, tested according to ASTM G-23 Method H for 50 hours.

Hardness: 75-105 Shore “A” Durometer

Thickness: 0.250 Inches (6.3mm)
