Description:

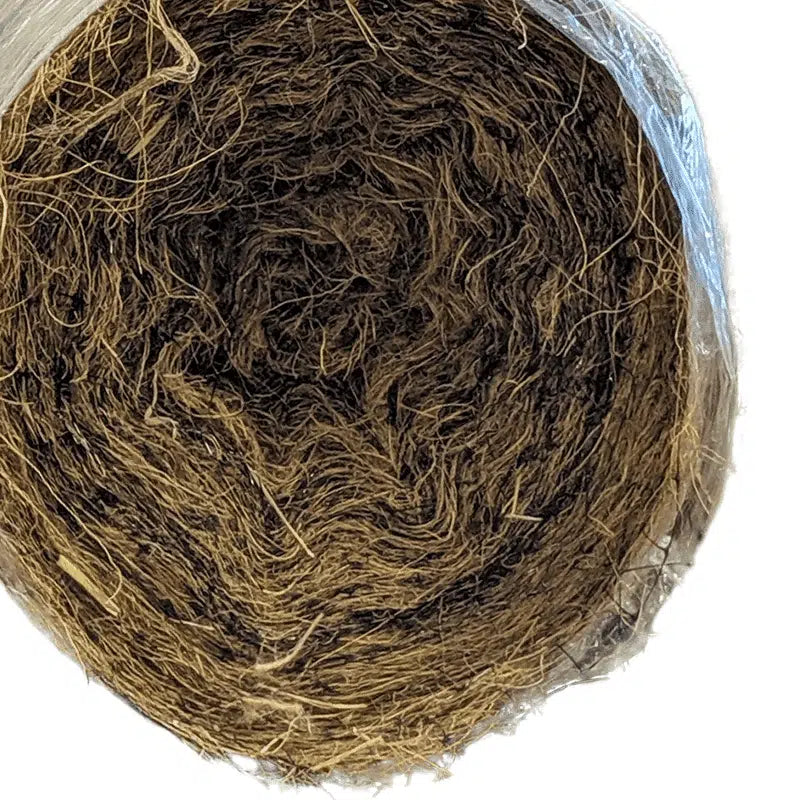

Made with 100% coconut fiber, the CC4 is an excellent choice for steep embankments, landfill side slopes, and high-flow channels. The blanket is slow to degrade, providing the most extended temporary erosion control available.
The properties of the coconut matrix provide long-lasting erosion protection and the highest level of performance protecting slope installations from rainfall and rain splash.
We supply a full line of Rolled Erosion Control Products (RECPs). CC-4 consists of a machine produced, clean coconut fiber matrix, manufactured to consistent width and length. The coconut matrix is confined by a photodegradable, synthetic net on top and bottom, mechanically (stitch) bound on two inch centers. CC-4 provides short term erosion protection and is intended for slope or channel applications requiring up to thirty-six months of functional longevity.
Specifications:
Each roll of CC-4 is manufactured under the Quality Assurance Program to ensure a continuous distribution of fibers and consistent thickness. Verified values are provided in Table 1 and product characteristics are provided in Table 2. Installation instructions and performance data are available.
Table 1
Tested Property | Test Method | Value | Units |
---|---|---|---|
Tensile Strength | ASTM D6818 | 21.7 (MD), 19.1 (TD) | lb/in |
Elongation | ASTM D6818 | 29.6 (MD), 25.6 (TD) | % |
Mass per Unit Area | ASTM D6475 | 8.4 | oz/yd2 |
Thickness | ASTM D6525 | 6.4 | mm |
Light Penetration | ECTC TASC 00197 | 17 | % open |
Water Absorption | ASTM D1117 | 263 | % |
Table 2
Property | Dimensions |
---|---|
Top Net | Synthetic Photodegradable |
Bottom Net | Synthetic Photodegradable |
Top Net Opening | 0.75” x 0.75” |
Bottom Net Opening | 0.75” x 0.75” |
Roll Width | 8.5 ft |
Roll Length | 112.5 ft |
Roll Weight | 55 lbs |
