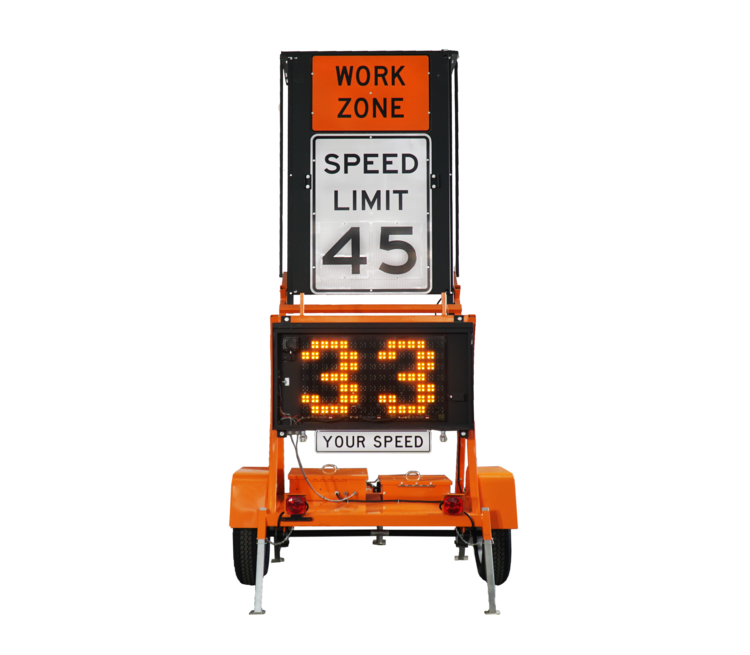

Sunray 415R - Radar Detection
National Signal continues to design the finest in radar speed displays with its SunrayTM 415R.
The SunrayTM 415R Radar Display is easily transported and simple to operate, providing an elevated, amber display with large, 18” high digits to ensure enhanced driver visibility.
Pre-programmed overspeed messages and a variety of options including wireless control via a cellular phone, add to its versatility and effectiveness.
Traffic safety is the driving force in National Signal’s ongoing research and development efforts.
Whatever your traffic requirements, you can depend on National Signal for the latest technology, innovation, reliability and our continued commitment to cost-effective solutions.
Features
• Trailer Mounted
• AllnGaP LED Technology
• Elevated display provides greater visibility
• 18”H characters and 4 Alpha character capability
• Environmentally friendly
• Reliable and Cost Effective
• Easy Operation
• NTCIP compliant
• Meet or exceed all state and federal highway MUTCD traffic safety specifications
| Batteries and Solar Collectors | |
|---|---|
| Batteries | 6v wired for 12v deep cycle with varying options |
| Battery enclosure | Lockable, ventilated, acid resistant |
| Solar collector | Crystalline silicon auto erecting |
| Numeric display | |
|---|---|
| Pixel matrix | 7 rows by 15 columns |
| Character size | 18” 3 numeric digits 4 alpha digits with preset messages when threshold speed is exceeded (eg: Too Fast, Slow down, $100 Fine) |
| Angularity | 25º total |
| Brightness | Manual/automatic 31 levels |
| Photo sensor | Shielded from extraneous light |
| Speed limit sign(s) | (3) regulation signs double sided |
| Trailer | |
|---|---|
| Width across fenders | 75" |
| Drawbar | 3”x 3”x 3/8” wall steel tube, removable |
| Fenders | formed steel for strength, bolt on |
| Frame | (4) post design 2.12” x 1.87” x .125 wall steel tubing MIG welded to chassis |
| Length w/ drawbar | 114” |
| Length w/o drawbar | 67” |
| Height w/ sign up | 139” |
| Height w/ sign down | 89” |
| Hitch | 2” ball class II 3500 lb capacity |
| Jacks | (4) slide type plated, (1) swing type w/ caster |
| Tire Size | ST205/75-D15 load C |
| Winch | 1000 lb with double disc brake system. 1/4” diameter galvanized steel with a test strength of 4400 lb minimum |
| Weight | 1500 lbs |
| Trailer | |
|---|---|
| Width across fenders | 75" |
| Drawbar | 3”x 3”x 3/8” wall steel tube, removable |
| Fenders | formed steel for strength, bolt on |
| Frame | (4) post design 2.12” x 1.87” x .125 wall steel tubing MIG welded to chassis |
| Length w/ drawbar | 114” |
| Length w/o drawbar | 67” |
| Height w/ sign up | 139” |
| Height w/ sign down | 89” |
| Hitch | 2” ball class II 3500 lb capacity |
| Jacks | (4) slide type plated, (1) swing type w/ caster |
| Tire Size | ST205/75-D15 load C |
| Winch | 1000 lb with double disc brake system. 1/4” diameter galvanized steel with a test strength of 4400 lb minimum |
| Weight | 1500 lbs |
| Radar Detector | |
|---|---|
| Type | One true doppler radar |
| Speed range | 5-200 Mph or km/h |
| Distance range | 1/4 to1/2 mile |
| Band type | K, 12º |
| Operating voltage | 10.8 vdc to 16.8 vdc |
| Operating temperature | -22F to +140F (-30C to +60C) 100% relative humidity at +99F (+37C) non-condensing |
Collapsible row
Collapsible row
Additional features
Additional features
