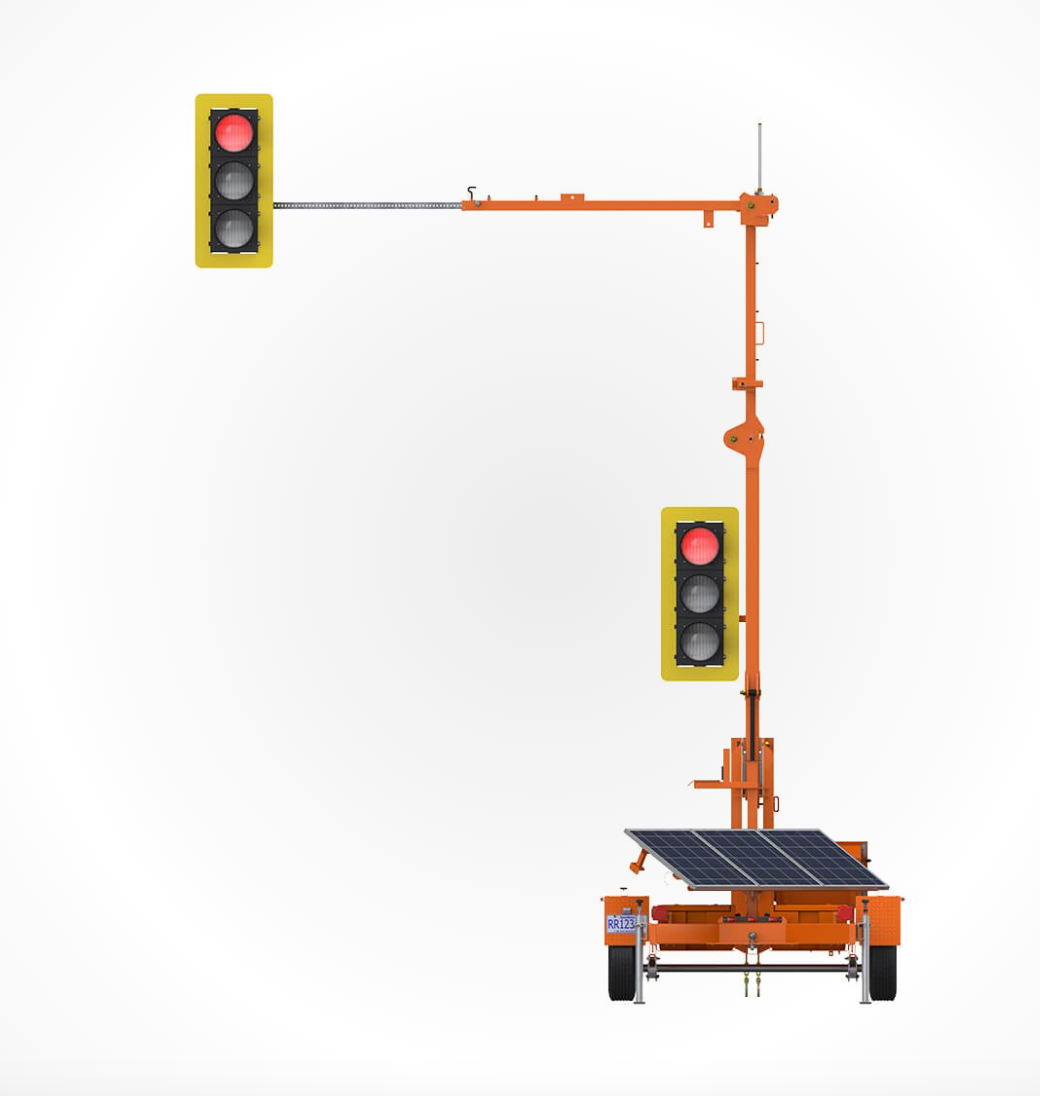

Trailer-Mounted Traffic Signals With Advanced Technology TLD-3612 G3: with Advanced Technology

• Enhanced communication stability
• Stronger radio signal covers a greater distance
• Faster user interface on our V-Touch Controller

Any unit can be a primary or secondary unit. No need to move them around.

Tilt-and rotate solar panels tilt up to 30^o and rotate up to 60^o to provide maximum charging.

Equipped with an adjustable overhead mast and hydraulic lift mechanism to deploy your unit with minimal effort and maximal versatility.

• Highly visible 12 in. (305 mm) ITE-compliant LED lamps.
• Lamps meet MUTCD and NEMA TS-5 standards and provide superior performance, reliability and energy efficiency.

Ensures secure communication between units.

Our system monitors radio communication, conflicts, signal malfunction and low voltages.

The maximum distance between units is up to 1 mile (1.6 km) line of sight.

Ability to create traffic plans for up to 4 units at a single intersection. Adapts to different project applications.

Save time and money by transporting both units with the same truck.

No polluting fuel emissions or unpleasant engine noise emitted.

90 MPH wind-load rating

Our battery boxes were designed to be weatherproof with updated latches and custom-made rubber washers to ensure a tight seal.

• Two (2) fixed cameras per trailer
• Create a signal plan in JamLogic software
• Monitor incoming and outgoing traffic
• Confirm work zone is clear before remotely changing the signal plan
• Send and activate signal plan through JamLogic
• Video storage for incident management

Increased Safety
The vehicle detection option increases work zone safety by automatically detecting vehicles and adjusting the green time. It is particularly useful when traffic is heavier on one side.

Customizable
Parameters are customizable to fit any work zone construction length.
When vehicles are detected, the green light can stay active up to the maximum preprogrammed time set by the user. The operator programs the minimum and maximum time, and the desired length of time for the extension.

Traffic signals can be programmed according to the time of day and rush hours.

How it Works
Vehicle detection is commonly used during rush hours. A green light can be programmed and 5 seconds can be added per detected car all the way up to the predetermined maximum time.

No Unnecessary Waiting Time
Have you ever been stopped at a traffic light for several minutes waiting for the countdown and not seeing any cars coming the other way? Frustrating, right? Vehicle detection solves this issue by automatically turning the light to green when a car is detected. No more unnecessary waiting time.

Typical Application
Pilot cars are mainly used in one-lane two-way work zones to guide traffic and keep their speeds within posted limits.

How it Works
The driver of the work zone pilot car waits for the vehicles to line up behind him/her and when ready, the driver presses the remote-control button to turn the light green. The preprogrammed sequence is then set in motion.

• Vehicles follow the pilot car all the way to the end of the work zone.
• The light stays green for as long as it is programmed to be and then goes back to red.
• Vehicles exit the work zone and the pilot car driver repositions himself/herself in front of the new line of vehicles.
• When ready, the same actions are repeated by the driver.

Operating the Lights
The times and settings are all preprogrammed including possible extension times for when there are long lines of vehicles. The lights will remain all red until the pilot car driver presses on the activation button to set the light he wants to turn green.

Wireless Remote Control
The wireless remote control option allows you to control your units from up to 300 feet away.

You can be positioned in a strategic location and control the units according to the situation.

The remote control has three buttons which allow you to control two phases and full stop, where both units are red (all red).

It is also possible to program your own phases too:

1. One side red and the other green
2. One side green and the other side red
3. Both units are red and all traffic is stopped.

Wired Remote Control
This option allows you to stand about 30 feet away from the unit, off from the road.

The remote control has three buttons which allow you to control two phases and full stop, where both units are red (all red).

It is also possible to program your own phases too:

1. One side red and the other green
2. One side green and the other side red
3. Both units are red and all traffic is stopped.

Typical Application:
Two-way road with one lane closed for work. A worker decides when the lights are red and when they are green, and changes them manually.

Two Units Displaying the Same Information
Some states require to always have two traffic signal sets to improve safety. The mirror mode enables 2 side-by-side units to act in conformity with this local requirement by displaying the same information.

Increased Safety
Imagine a scenario where there is a long line of cars and trucks. When using only one traffic signal, the cars that are at the very end of the queue may not see what is going on, especially if the wait time is quite long.

The mirror mode, using two units (1 on each side of the road), improves work zone safety by ensuring that the drivers can see the units and information displayed at all times.

The advanced warning system warns motorists of upcoming temporary traffic signals and indicates that the light is about to turn red, helping them reduce their speed and prepare to stop.

The advanced warning trailer comes with flashing beacons on each side of the sign to get motorists’ attention. The operator can set the pre-warning delay to adapt to the local situation and distance between the warning trailer and the traffic signal.

This product improves safety near work zones by providing clear indications to motorists.

How it Works
The signal is picked up by infrared detectors or sonar pulsation that is undetectable by individuals (the emergency vehicle and traffic signals must be equipped with the system). When the emergency signal is detected, all sequences and phases will be canceled and set to the emergency phase.

Applications
In a 4-way intersection, when the emergency signal is detected, all traffic signals will turn red, except for the unit where the emergency vehicle is approaching, which is automatically given priority.

Add even more security to your anti-theft battery box. This option involves adding a reinforced steel cover, which will be permanently installed on the box.

A two-section steel belt is attached to the underside of the box, which creates a provision for installing a heavy-duty padlock on each side. This feature enhances security and helps further reduce vandalism and theft.
