- Easy to operate and maintain
- High-output LEDs provide superior visibility
- 13-, 15- and 25-light models
- 5, 7 or 12 arrow display modes see control panel photos
- Positive-drive voltage system applies power to lamps only when lit
- Optional automatic dimming
- Flash rate of 30–40 per minute
- Numerous sizes and mounting options
- Durable finish resists the elements
- Meets MUTCD
Options

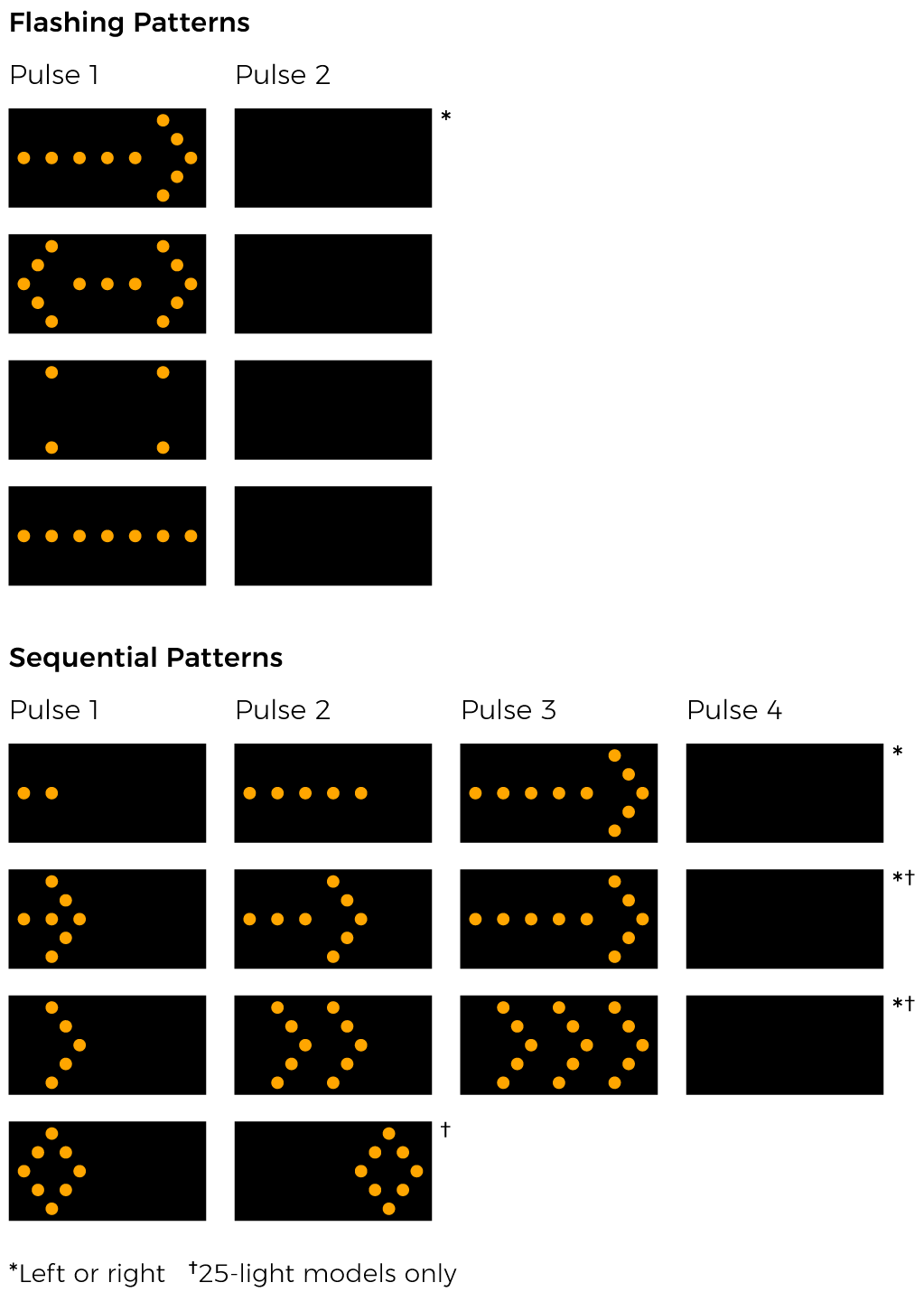

Display
- 13-light, 5 patterns (small board only)
- 15-light, 5 patterns
- 15-light, 7 patterns
- 25-light, 12 patterns
Board sizes — inches (cm)
- 24 × 48 (61 × 122)
- 30 × 60 (76 × 152)
- 36 × 72 (92 × 183)
- 48 × 96 (122 × 244)
Communications
Mounting Options
- Manual-tilt (auto-lock) frame Model WFB
- 180-degree power-tilt frame Model WFP180B
- 90-degree power-tilt frame Model WFBP
- Low-profile power-tilt frame Model WLP90B
- Tailgate bracket Model WVGB
- Truck bed mount
- Customer-supplied mounting Model WB
| Board size inches (cm) | Lamp qty. | Lamp size | MUTCD type | Min. legible distance miles (km) |
|---|---|---|---|---|
| 24 × 48 (61 × 122) | 13 | PAR 36 | A | 0.5 (0.8) |
| 30 × 60 (76 × 152) | 15 | PAR 36* | B | 0.75 (1.2) |
| 25 | PAR 36 | B | 0.75 (1.2) | |
| 36 × 72 (92 × 183) | 15 | PAR 46 | B | 0.75 (1.2) |
| 25 | PAR 46 | B | 0.75 (1.2) | |
| 48 × 96 (122 × 244) | 15 | PAR 46 | C | 1 (1.6) |
| 25 | PAR 46 | C | 1 (1.6) | |
| *PAR 46 optional | ||||
Construction
Arrow board material
Aluminum sheet and welded channels
Coating
Powder-coated and oven-baked
Electrical
Wiring
Arrow board connects to controller with a single weatherproof cable Cable is hard-wired to arrow board, plug-in wiring connector at controller
Cable length
15 ft. (4.57 m) standard; custom lengths available upon request
Power
Arrow board display, controller, and optional actuator are all powered by vehicle alternator system
Specifications subject to change without notice.
